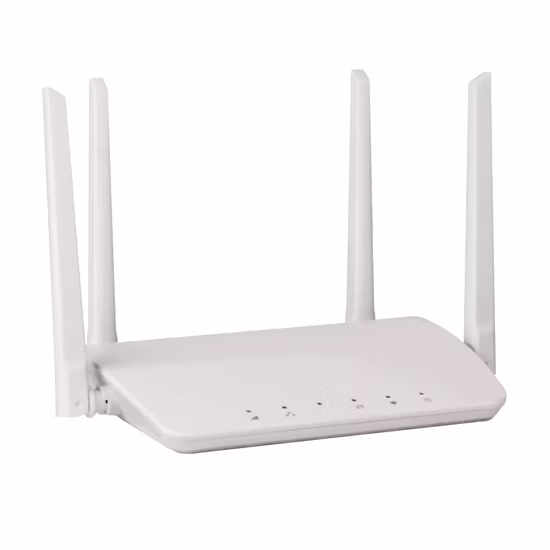

Hot Sale VPN Openwrt 3G/4G Lte Industrial Router Indoor CPE with Poe Power Supply
Hot sale VPN openWRT 3G/4G LTE industrial router indoor CPE with POE power supply Highlight 1). 3G/4G LTE data transmiss
Basic Info
| Model NO. | HDRM100 |
| Type | Wireless |
| Network Site | Border Router |
| Transfer Rate | 300Mbps |
| Firewall | Firewall |
| Ports | 3 |
| Port Structure | Modular |
| Application | Enterprise, SOHO |
| Network | WCDMA |
| Performance | Non Line Speed Router |
| Architecture | Single Bus CPU |
| Model Number | Hdrm100 |
| Brand Name | Head Weblink |
| Us Frequency Band | FDD- Lte. B2,B4,B5,B7,Tdd- Lte. B38 |
| EU Frequency Band | FDD-Lte.B1,B3,B7,B8,B20,B28.Tdd-Lte,B38,B39,B40 |
| Data Rate | Cat 3, Cat 4, Cat 6 |
| WCDMA/UMTS | 2100/1900/1700/850(900)MHz |
| Network Mode | FDD Lte, Tdd Lte,HSPA+,WCDMA,GPRS,GSM,EVDO,CDMA 1X |
| Function | WiFi , VPN , Openwrt, Ipsec Tun |
| Protocol | VPN,Tr069,Snmp,DHCP,DDNS |
| Port | I Uart RS232 ,Console Communication Port RS485 |
| Transport Package | All Items Are Well Packed According to The Require |
| Specification | 115mm*73mm*20mm |
| Trademark | Head weblink |
| Origin | China |
| Production Capacity | 100000sets/Month |
Product Description
Hot sale VPN openWRT 3G/4G LTE industrial router indoor CPE with POE power supply
Highlight
1). 3G/4G LTE data transmission;2). Active auto connect;3). Embedded watchdog , Auto recovery;4). 2*2 4G/WIFI MIMO antenna;5). Integrate 3G/4G LTE,WIFI,GPS feature;6). 4G LTE. Support CAT 3, CAT 4, CAT 6 now.7). WIFI High quality performance without congestion;8). 1 WAN/1 LAN or 2 LAN ports, One console port;9). With SIM card slot;10). Wide power supply: +6V/2.5A~+48V/0.5A11). Remote management platform;12). Firmware version: Linux or Openwrt;13). Small size dimension:115mm*73mm*20mm
| Specification | |||
| ITEM | VERSION | Description | |
| CPU | MTK7628 | ||
| Memory | FLASH 8MByte, DDR2 64MByte | ||
| Network mode | 4G Version | FDD LTE, TDD LTE,HSPA+,WCDMA,GPRS,GSM | |
| 3G version | WCDMA,GPRS,GSM | ||
| EVDO,CDMA 1X | |||
| Frequency bands | 3G version | WCDMA | 850/1900MHz, 850/2100MHz & 900/2100MHz,GSM,850/900/1800/1900MHz |
| EVDO | 800MHz & 800/1900MHz | ||
| 4G Version | Version A. | LTE FDD. B2,4,5,17. UMTS. 850/1900MHz | |
| Version C. | LTE FDD. B1,3,7,8 .LTE TDD B38, B39, B40, B41. | ||
| UMTS. 900/2100MHz. | |||
| TD-SCDMA. 1880~1920MHz & 2010~2025MHz | |||
| GSM. 900/1800MHz | |||
| Version E. | LTE FDD. B1,3,7,8,20 ,LTE TDD B38, B40. | ||
| UMTS. 900/2100MHz. | |||
| GSM. 900/1800MHz | |||
| Version JC | LTE FDD. B1,B3,B8,B18,B19. LTE TDD. B41. | ||
| UMTS. B1,B6,B8. | |||
| GSM. 900/1800MHz | |||
| Version JE | LTE FDD. B1,B8 | ||
| UMTS. B1,B8 | |||
| GSM. 900/1800MHz | |||
| Version SA | LTE-FDD B1/B3/B4/B5/B7/B8/B28, LTE-TDD B38/B40/B41 | ||
| UMTS/HSDPA/HSPA+ B1/B2/B5/B8 | |||
| GSM/GPRS/EDGE B2/B3/B5/B8 | |||
| GPS | Optional, GPS/GNSS/BD,gpsOne Gen 8B;standalone;assisted,XTRA; | ||
| Data rates | |||
| 3G Router | WCDMA | DL 14.4Mbps, UL 5.76Mbps | |
| EVDO | DL 3.1Mbps, UL 1.8Mbps | ||
| 4G LTE router | LTE FDD | DL 100Mbps~300Mbps, UL 50Mbps | |
| LTE TDD | DL 50Mbps, UL 25Mbps | ||
| HSPA+ | DL 42Mbps, UL 5.76Mbps | ||
| TD-SCDMA | DL 2.8Mbps, UL 2.2Mbps | ||
| GPRS | Max. 85.6Kbps(DL), Max. 85.6Kbps(UL) | ||
| WIFI | 802.11b/g/n, 300Mbps | ||
| LAN | 2* LAN Ports, 100Mbps | ||
| Hardware interface | |||
| SIM card | 1*SIM card, Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection | ||
| UART | 1*RS232 port | ||
| Power supply | Input. +6V/2.5A~48V/0.5A,Standard Power Supply,DC +12V/1.5A | ||
| LED Indicator | SYS, Net, WAN, LAN,RSSI | ||
| RF connectors | SMA connector , 4G(female),WIFI(male),the characteristic impedance 50Ω . | ||
| Antenna | 2*2 4G/WIFI MIMO antenna; | ||
| Software | |||
| Security Encryption | Support WEP,WPA,WPA2 encryption ways | ||
| Watchdog | Embedded watchdog , System auto recovery; | ||
| Data link | Active auto connect; | ||
| Protocol | PPTP,L2TP,IPSEC VPN,Open VPN,GRE,TCP,UDP, DHCP,HTTP,DDNS,TR-069, HTTPS, SSH,SNMP etc. | ||
| VLAN | Support VLAN feature | ||
| Data backup | Double backup, keep data safe and reliable | ||
| Server | Remote management platform; | ||
| Operating system | Linux or OpenWRT | ||
| Environmental parameters | |||
| Conditions | Operating temperature | -40ºC - +75ºC | |
| Storage temperature | -45ºC - +80ºC | ||
| Operating humidity. | 5%-95% | ||
| Case | Aluminum Alloy Shell | ||
| Dimension | 115mm*73mm*20mm | ||
| Weight | 160g | ||
