New WiFi 2.4G&5g Router Cat12/Cat20 CPE

New WiFi 2.4G&5g Router Cat12/Cat20 CPE

Product Description Product Application New Wifi 2.4g&5g router cat12/cat20 CPEThe HiR204 series 5G indoor CPE supports
Basic Info
Model NO. HIR204 Cat12 Version
Type Wireless Router Hir204 Cat12
Work Mode AP+STA
WiFi Antenna Type Built-in
Transmission Rate >200Mbps
Voltage +5V~24V
Antenna Gain 10~13dBi
Color White
Certification RoHS, CE
Network Mode 4G Cat12/Cat18/Cat20
Chipset Mtk7621A, Mips1004kc, 880Mbps,Dual-Core
Model Version Hir204 Cat12 Version
Hardware Interface 1*Wan/1* LAN Gigabit Ethernet Port. 1*USB2.0 Port.
Transport Package Normal Export Carton
Specification 93.5x93.5x172.5mm
Trademark Head Weblink
Origin China
Production Capacity 100000/Month
Product Description

Product Application

New Wifi 2.4g&5g router cat12/cat20 CPEThe HiR204 series 5G indoor CPE supports the global 3G/4G LTE/5G network frequency bands and network standards of major countries and regions in the world, and supports the theoretical 4G rate of 300~600Mbps/100Mbps (DL/UL). Support 802.11b/g/n/ac, 2.4G/5.8G dual-band WIFI local networking and hotspot sharing. Support 4 Gigabit LAN ports, one RJ11 voice port, support VOIP and VOLTE voice calls.HiR204 has a built-in watchdog, never downtime, provides link maintenance function, self-recovery after disconnection, to ensure reliable and stable data connection, and keep it permanently online. Provide a safe and reliable high-speed data access channel for user equipment. High Light Chipset SolutionMDM9x50+MT7621A+MT7613+MT7603+Le9643Interface Specification1. 4G CAT12 2. 4* RJ45 for 1 WAN + 3 LAN 3. 802. 11a/b/g/n/ac 2T2R 2.4G /5G 4.1*RJ11 slic

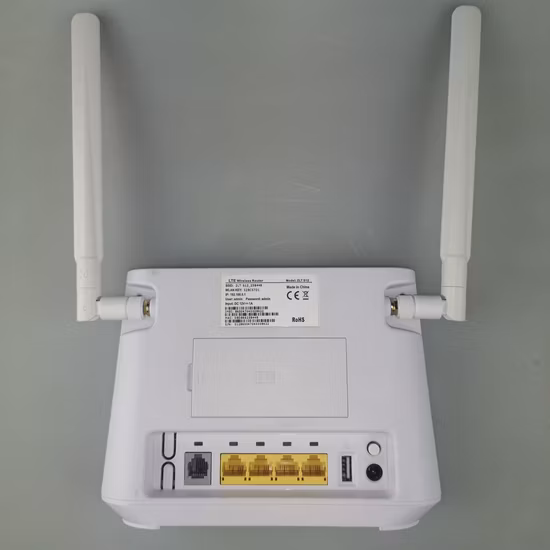

New WiFi 2.4G&5g Router Cat12/Cat20 CPE

New WiFi 2.4G&5g Router Cat12/Cat20 CPE

New WiFi 2.4G&5g Router Cat12/Cat20 CPE


Specification
Technical Standard
HardwareSoftware
Chipset Solution
MDM9x50+MT7621A+MT7613+MT7603+Le9643

Interface Specification
1. 4G CAT12
2. 4* RJ45 for 1 WAN + 3 LAN
3. 802. 11a/b/g/n/ac 2T2R 2.4G /5G
4.1*RJ11 slic

4G/ 3G;

Ethernet;

SMS;

Firewall;

MAC address Filtering;

WiFi encryption authentication/WPS;

IPv4/ IPv6 and IPv4v6 dual stack support;

WAN/LAN configuration support;

VPN client service (L2TP, PPTP) ;

TR-069 services;

WebUI;

Frequency Bands
Band Selection1Band Selection2

LTE-FDD: B1/B3/B5/B7/B8/B20/B28

LTE-TDD: B38/B40/B41

HSPA+/WCDMA: B1/B3/B5/B8

LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71
LTE-TDD: B41
HSPA+/WCDMA: B2/B4/B5
Other Band can be customized;
SpeedWIFI
Cat12:
UL 2CA 64 QAM ,DL 2CA 256QAM ,2x2MIMO

LTE-FDD: Max 600Mbps (DL),Max 150Mbps (UL)
LTE-TDD: Max 430Mbps (DL),Max 90Mbps (UL)
WLAN: IEEE 802.11a/b/g/n/ac
WLAN: Built-in 2T2R

Environment Requirement
Operating Temperature:0ºC~40ºC
Storage Temperature :-20ºC~65ºC
Humidity:5%~95%, non-condensing
Power Supply:Input power 100-240V, 50/60Hz
Input power: 12VDC 1.5A
Basic feature
Operating system.
OpenWRT solution introduction
Firmare Linux2.6 SDK , OpenWRT
like network manage , internet , short massage , phonebook etc.
•OpenWRT native Feature. •kernel open source and TW VUE WebUI.
Support all the function which in original OpenWRT.


New WiFi 2.4G&5g Router Cat12/Cat20 CPE

New WiFi 2.4G&5g Router Cat12/Cat20 CPE
