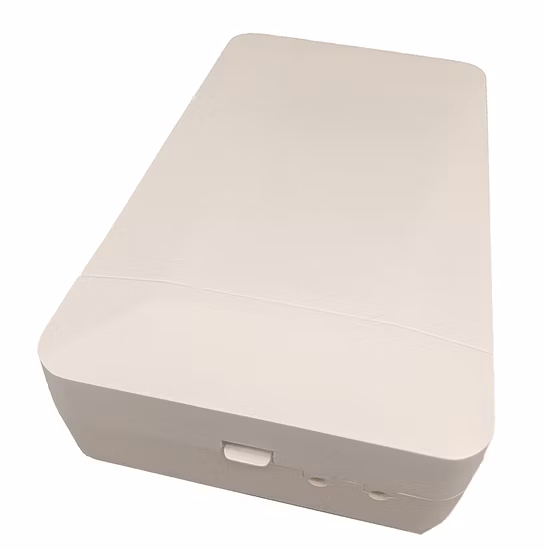

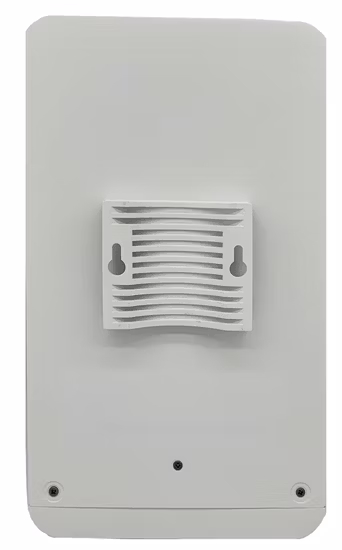

5g 4G Outdoor Industrial Outdoor Waterproof CPE

Basic Info

Model NO.	HOR204 HOR205
Application	Enterprise
Performance	Non Line Speed Router
Architecture	Crossbar System
Function	Firewall, Qos, VPN
Antenna	10dBi Built-in
Weight	554G
Feature	Waterproof, Dustproof
Frequency Band	N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79
System	Openwrt
Flash	16MB, DDR:264MB
4G LTE and 5g	Cat 4, Cat 6, Cat12, 5g
Interface	2*RJ45
Transport Package	Carton
Specification	172*165*90mm
Trademark	Head Weblink
Origin	China
Production Capacity	100000

Product Description

10km long distance outdoor CPE 2.4G &5GHZ dual band 300Mbps 4G LTE Module router for CCTV camera

High light 13km Long range LTE data transmission;• Active auto connect; • 4*4 5G MIMO antenna;
• 2*2 4G MIMO antenna;

• 4G LTE /5G antenna gain: >10DBi• Integrate 3G/4G LTE,WIFI,GPS feature;• 2 LAN ports;• With SIM card slot;• Remote management platform;• Waterproof,dustproof,lightning protection. Protection level, IP67
2.4GHZ &5GHZ WIFI
POE power suppply



HOR205 HOR204 series dual LAN ports 4G LTE /5G outdoor router integrated 2G/3G/4G LTE/5G /WIFI/GPS feature. It's designed waterproof,dustproof,lighting protection feature. Because of the industrial quality and multiple RF band combination.

This router provides stable and reliable data connection for user device such as RTU, Broadband access, intelligent transportation and other remote device management application. In order to achieve permanent online, some key featrues such as watch-dog function, wide temperature and multiple RF band/mode are supported by HDR100 series outdoor router,making it can be used in any environment of worldwide.



Support 5G Frequency band

5G NR:
n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79
LTE:
B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/
B12(17)/B13/B14/B20/B25/B26/B28/
B29/B30/B38/B39/B40/B41/B42/B43/
B46/ B48/B71
DL 4×4 MIMO:5G NR:n1/n2/n3/n7/n41/n66/n77/n78/n79LTE:B1/B2/B3/B4/B7/B25/B30/B38/B39/B40/B41/B42/B43/B48/B66DL 256QAMUL 64QAMWCDMA:B1/B2/B3/B4/B5/B8/B9/B19

Item	Product specification
Chipset	MTK7620N+4G Modem ( CAT 3, MDM9X15. CAT 4 MDM9X07, CAT 6, MDM9330 )
MEMORY	FLASH 16MByte, DDR2 64MByte
Embedded system	Openwrt
Network	FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X
WIFI	WIFI 802.11 b/g/n, 300Mbps
Data rate	4g: CAT 3, DL 100bps , UL 50Mbps ( or CAT 4 DL 150Mbps , UL 50Mbps, CAT 6 DL 300Mbps , UL 50Mbps )WCDMA HSPA+: DL 42Mbps, UL 5.76MbpsGPRS DL/UL 85.6Kbps
WIFI Tx Power	14 dBm(11g),17 dBm(11b),14dBm(11n)
WIFI Rx Sensitivity	<-70 [email protected]
2G/3G/4G/5G Transmitting Power	GSM/GPRS:Class 4 (2W): GSM850,EGSM900Class 1 (1W): DCS1800,PCS1900EDGE:Class E2 (0.5W): GSM850,EGSM900Class E1 (0.4W): DCS1800,PCS1900UMTS:Class 3 (0.25W): WCDMAClass 3 (0.25W): CDMA2000Class 2 (0.25W): TD-SCDMALTE:Class 3 (0.25W)
GPS	GPS/GLONASS,Protocol: NMEA
2G/3G/4G/5G Frequency bands	Version CLTE-FDD. B1,3,7,8LTE-TDD.B38,39,40,41WCDMA.900/2100MHzTDSCDMA. band A and band BGSM.900/1800MHzVersion E.LTE-FDD. B1,3,7,8,20LTE-TDD.B38,40WCDMA.900/2100MHzGSM.900/1800MHzVersion A.LTE-FDD. B2,4,5,17WCDMA.850/1900MHzVersion SA.LTE-FDD. B1/B3/B5/B7/B8/B28UMTS/HSDPA/HSPA+ B1/B5CAT 6 Version.Version ELTE-FDD. B1,B3,B5,B7,B8,B20,B28,B32LTE-TDD.B38,B40,B41WCDMA.B1,B3,B5,B8Version A.LTE-FDD. B2,B4,B5,B12,B13,B25,B26,B29,B30,B66LTE-TDD. B412*CA. B2+B2/B5/B7/B12/B13/B25/B26/B29;B4+B4/B5/B12/B13/B26/B29B7+B5/B7/B12/B13/B26/B29B25+B5/B12/B13/B25/B26/B29B30+B5/B12/B13/B26/B29B66+B5/B12/B13/B26/B29/B66WCDMA B2/B4/B5Version LA.LTE-FDD. B2/B3/B4/B5/B7/B8/B20/B28LTE-TDD.B38,B39,B40,B41 2*CA. B1+B3/B8/B18/B19B3+B5/B19 B7+B5/B7 B21+B19B38+B38B39+B39B39+B41B40+B40B41+B41WCDMA B1/B5/B6/B8/B9/B19 5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 LTE: B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/ B12(17)/B13/B14/B20/B25/B26/B28/ B29/B30/B38/B39/B40/B41/B42/B43/ B46/ B48/B71 DL 4×4 MIMO: 5G NR: n1/n2/n3/n7/n41/n66/n77/n78/n79 LTE: B1/B2/B3/B4/B7/B25/B30/B38/B39/B40/B41/B42 /B43/B48/B66 DL 256QAM UL 64QAM WCDMA: B1/B2/B3/B4/B5/B8/B9/B19
Hardware interface	2*LAN 10/1000Mbps
POE Output	Support second LAN port POE power supply output(Optional) , Same as input power load capacity.It can be select switch on/off on web UI.
RF	Built-in WIFI, 4G LTE, 5G GPS MIMO directional antenna
Security Encryption	Support WEP,WPA,WPA2 encryption ways
Protocol	PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH, Open VPN,SNMP
LED Indicator	"SYS", "Net", "WAN", "LAN",RSSI
SIM/UIM	Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection
Standard Power	POE input: DC 18V/1A
Power Supply	POE input: DC 5~48V
Working current	2A (Max Current)
Temperature	Operating Temperature -40~+80ºCStorage Temperature -45~+85ºC
Case	Waterproof plastic shell, IP67
Weight	554g
Environment humidty	95%
