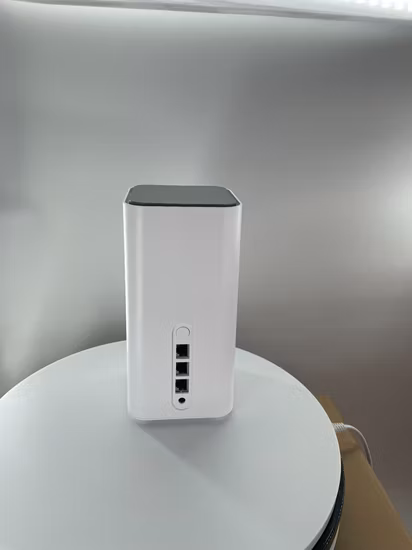

5g and WiFi 6 Wireless Router CPE Compatible with Nsa/SA Dual-Mode

Basic Info

Model NO.	W01S24E
Application	Enterprise, SOHO
Network	WCDMA
Performance	Line-Rate Router
Architecture	Crossbar System
Transport Package	Carton
Specification	CE/EMC, CE/LVD, FCC Certification
Trademark	POEPLUS
Origin	China

Product Description

overview
5G & WiFi-6 Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing-up mobile connections requirements and provides the fast speed beyond your imagination.

The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places.

The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.

Feature
5G Cellular Built-in UNISOC V510 modem, it has best 5G mobile network performance and works with integrated world-wide 5G to 2G multi-mode.
Wi-Fi 6 (802.11ax)The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line,more client connection, lower latency, best network efficiency.

Higher Wireless CapacityDual-band 4 spatial streams, the CPE outputs 1800Mbps wireless bandwidth (600 + 1200), makes you peace of mine while enjoy UHD videos, online games at the home rush hours. It's the future-proof investment absolutely.



Hybrid MESH+ Networking
The CPE inherits the mesh technology and supports "wired / wireless" hybrid networking. It's so convenient to cover all corners and dead-zones by adding one more MESH+ node (another series of router). it improves the deployments of wireless network and optimized the seamless feature.5G Datasheet

1. 5G Cellular

1. 5G Baseband: UNISOC V510 Modem-RF System
2. 5G Network Modes: SA (standalone), NSA (non-standalone)
3. 5G Bands: N1/N3/N8/N28/N41/N77/N78/N79
4. 5G Standards:3GPP Release 15
5. 5G SA Transmission Speed:2Gbps/1000Mbps (up to ISPs)
6. 5G NSA Transmission Speed:2.2Gbps/576Mbps (up to ISPs)

4G Datasheet

1. 4G Cellular

1. LTE-FDD:B1/B2/B3/B5/B7/B8/B20/B28A/ B28
2. LTE-TDD: B34/B38/B39/B40/B41
3. LTE : Down 600Mbps;UP 150 Mbps

WiFi6 Datasheet

1. WiFi 6(802.11ax)

1. Working Radio: #1: 600Mbps @ 2.4GHz; #2: 1200Mbps @ 5.1-5.8GHz
2. Coding Technology:1024-QAM / OFDMA
3. Peak Connections:>100+ Clients
4. Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward
5. Antenna: built-in 4 pcs high performance antennas with 4 pcs external FEM components.

1. Data Switching

1. Mobile 4G/5G Connection (Support APN)
2. Giga Ethernet Connection
3. MESH:MESH+ hybird
4. 2.4G/5Ghz WiFi
5. Advanced Firewall
6. MAC Filter
7. WiFi Sercurity
8. VPN Passthrough and VPN Client (L2TP PPTP)
9. IPV4/IPV6
10. WEB / APP Mangement
11. Firmware upgrade

Hardware specifications

1. Hardware Specification

1. CPU: MT7621AT
2. Memory:16MB Flash + 256MB DDR3
3. Ethernet:1*1Gbps WAN,2*LAN 1Gbps
4. 1* SIM Slot(Nano-SIM)
5. Reset button
6. MESH+ Button
7. MESH+ LED Switch
8. LED Indicator

• MESH+ Working Status (breathing light)
• 4G Status
• 5G Status
• WiFi Status
• Power Status

1. General

• Power Consumption:<20W
• DC Power Supply: 12V/2A
• Working temperature:0ºC~40ºC, Storage temperature: -20ºC~+70ºC
• Humidity:5%~95%
• Dimensions:108X108X216MM
• Weight: TBD
