High Speed 10/100/1000Mbps Ethernet Port 2.4G&5g Whole-Home Mesh System 802.11ax Mu-MIMO WiFi Router

Basic Info

Model NO.	SHFiM6
Application	Enterprise, SOHO
WiFi Band	2.4GHz & 5.8GHz
WiFi Speed	1800Mbps
WiFi Access	Maximum 128 User Connected
Wireless Security	Wep, Wpa / Wpa2, Encryption
Antenna	4 X 5dBi Dual Band Internal Antennas
Power Supply	DC 12V 1.5A Input:100-240V-50/60Hz
Size	210.26 X 154.11 X 35.59mm
Certification	RoHS, CE
Transport Package	Carton
Specification	4G CPE
Trademark	Sunhans
Origin	China
HS Code	8517623690
Production Capacity	10000PCS/Month

Product Description

2.4G&5G Dual Band WiFi6 802.11ax AC1800 Whole-home Mesh WiFi System Wireless Router with 4 External Antennas Stronger Signal Wider Coverage
Product DescriptionFeature:
1. The next generation Whole-Home Mesh Wi-Fi System,SHFiM6 creates a distributed Wi-Fi network that covers up to 400m², Blanket your three-storey house in reliable Wi-Fi.2. Supports 802.11ax + Beamforming Technology + QoS intelligently allocates bandwidth,Hassle free gaming and streaming experience simultaneously. 3. Compatible with 802.11a/ b/g/n/ac/ax products. 4. Supports wired interconnection and wireless hybrid interconnection, and flexibly realizes the "network cable + wireless" interconnection method, which is convenient and fast, and the Internet is more intimate.5. Simultaneous Dual Band - for combined wireless speeds of up to 1800Mbps , and with one single SSID and password ,Uninterrupted video chat while moving across your home. 6. Easy and fast setup with pre-configuration , Easy one-touch Mesh establishing with the Reset button.7. Advanced Wireless Security, including WEP, WPA, WPA2, as well as wireless MAC Authentication.Product Parameters

Wireless Features
Wireless Standards	IEEE802.11a/n/ac/ax,5GHzIEEE802.11b/g/n/ax,2.4GHz
Chipset	MediaTek MT7621A+MT7915DN+MT7975DN
Memory	DDR:256MBFlash:16MB
Data Rate	5GHz: Up to 1200Mbps2.4GHz: Up to 573.5Mbps
Operation Frequency	Simultaneous dual band 2.4GHz & 5GHz
EIRP	2.4GHz < 20dBm, 5GHz < 23dBm
Wireless Security	WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
Wireless Roaming	Comply with IEEE802.11k/v/r
Hardware Features
Standards	IEEE802.3, IEEE802.3u
Interfaces	1 x 10/100/1000Mbps WAN Port3 x 10/100/1000Mbps LAN Port
Buttons	Reset Button
Power Supply	DC 12V 1.5A Input:100-240V-50/60Hz
Antenna	4 x 5dBi dual band internal antennas
Dimensions (W X D X H)	210.26X154.11X35.59mm ,
Software Features
Internet Connection Type	Dynamic IP/Static IP/PPPoE/Bridge
Operation Mode	Gateway Mode, AP Mode, WISP Mode,
DHCP Server	DHCP Server, DHCP Client, DHCP Client List,
Wireless Functions	Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPSGuest network
Quality of Service	WMM, QoS(Bandwidth Control) , DMZ
VPN Pass-Through	PPTP, L2TP, IPSec
Access Control	Wireless Access Control
Firewall Security	IP Address Filter/MAC Address Filter/URL FilterParent ControlPort Forwarding802.1Q Vlan
Management	DDNSTime Zone StettingRemote ManagementBackup & Update & Restore to factory defaultSystem log
Internet Protocol	IPv4/IPv6
Environment
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Oprerating Humidity	10%~90%, non-condensing
Storage Humidity	5%~95%, non-condensing
Certifications	CE, RoHS
Package Contents

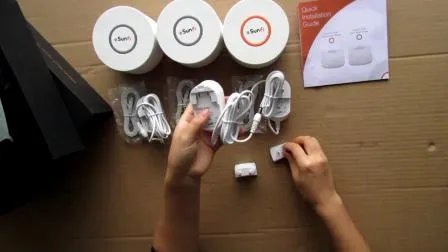

Package Contents	3x SHFiM63x Power Adapter1 x Quick Installation Guide3 x Ethernet Cable

Installation Instructions SHFiM6 is a 1800Mbps dual band distribution mesh Wi-Fi system designed for 200-400m² houses, bringing you with whole home Wi-Fi coverage, as well as fast and stable internet connection. With combined wireless speeds of up to 1.8Gbps, the device provides better speeds. Simple tasks and intensive tasks like online gaming or HD video streaming can be handled by the 2.4GHz & 5GHz band concurrently. Compliant with IEEE802.11k, IEEE 802.11v and IEEE 802.11r seamless roaming protocols, SHFiM6 supports automatic network optimization and automatic routing selection, allowing you to enjoy more stable and flexible wireless network.
