Sunhans 3 Packs White Mesh System Wireless Dual-Band 2.4G&5g Gateway WiFi Router for Large Coverage Whole-Home 4000sq. FT

Basic Info

Model NO.	SHFiM2A-pro
Application	Enterprise, SOHO
Network	IEEE802.11A/N/AC,5GHz. IEEE802.11b/G/N,2.4GHz
Performance	Non Line Speed Router
Architecture	Whole Home Mesh Router
Operation Frequency	2.4GHz & 5GHz
Wireless Standards	802.11b/G/N/AC IEEE 802.3
Power	5GHz < 23dBm
Wireless Roaming	Comply with IEEE802.11V/R
Buttons	Mesh Button, Reset Button
Power Supply	DC 12V 1.5A Input:100-240V-50/60Hz
Max. LAN Data Rate	1000Mbps
Antenna	Internal Antenna
Size	106X106X70mm
Certifications	Ce, RoHS
Transport Package	Carton
Specification	Mesh WiFi System
Trademark	Sunhans
Origin	China
Production Capacity	10000PCS/Month

Product Description

Whole Home SHFiM2A-pro 3 pack AC1200 Mesh WiFi System Dual-Band Gateway Router for 4300sq.ft WiFi Coverage Wireless Bridge
Product Description

Festures :

1. The next generation Whole-Home Mesh Wi-Fi System, SHFiM2A creates a distributed Wi-Fi network that covers up to 4300sq.ft and through 3 wall. Blanket your three-storey house in reliable Wi-Fi. It's suitable for the office, villas, duplexes, bars and other places.
2. SHFiM2A Mesh router series, the best combination of connection , the strongest output signal of Transmit Beamforming, and the nearby terminal equipment intelligently selects the best path to connect the signal source.
3. Using high performance chip, Combined with mu-mimo technology, the hardware NAT acceleration supports multiple people to surf the Internet at the same time.
4. Supports 802.11ac Wave2 MU-MIMO + Beamforming Technology + QoS intelligently allocates bandwidth, Hassle free gaming and streaming experience simultaneously.
5. Compatible with 802.11a/ b/g/n/ac products.
6. Easy and fast setup with pre-configuration , Easy one-touch Mesh establishing with the Mesh button.
7. Advanced Wireless Security, including WEP, WPA, WPA2, as well as wireless MAC Authentication.
8. 2.4GHz & 5GHz Dual- band parameters, excellent signal penetration, can effectively enhance the transmission intensity and reception sensitivity of signals. Compared with common wireless device, it has the effect of doubling through the wall, especially for mobile phones, ipads and other terminal devices, and it has extremely high signal receiving capacity.

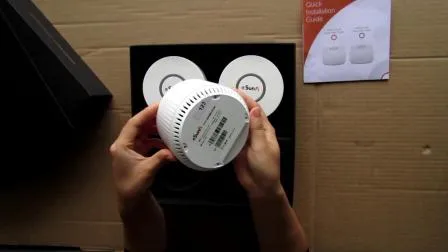

Detailed Photos

Product Parameters

Parameters:

Wireless Features
Wireless Standards	IEEE802.11a/n/ac,5GHz
	IEEE802.11b/g/n,2.4GHz
Data Rate	5GHz: Up to 867Mbps
	2.4GHz: Up to 300Mbps
Operation Frequency	Simultaneous dual band 2.4GHz & 5GHz
EIRP	2.4GHz < 20dBm, 5GHz < 23dBm
Receive Sensitivity	5GHz
	11a 6Mbps: -96dBm, 11a 54Mbps: -79dBm
	11ac HT20: -71dBm, 11ac HT40: -66dBm, 11ac HT80: -63dBm,
	11n HT20: -72dBm, 11n HT40: -71dBm
	2.4GHz
	11g 54M: -77dBm
	11n HT20: -74dBm, 11n HT40: -72dBm
Wireless Security	WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
Wireless Roaming	Comply with IEEE802.11v/r
Hardware Features
Standards	IEEE802.3, IEEE802.3u
Interfaces	1 x 10/100/1000Mbps WAN/LAN Port
	1 x 10/100/1000Mbps LAN Port
Power Supply	DC 12V 1.5A Input:100-240V-50/60Hz
Antenna	2 x 5dBi dual band internal antennas
Dimensions (W X D X H)	106X106X70 mm
Software Features
Internet Connection Type	Dynamic IP/Static IP/PPPoE/Bridge
Operation Mode	Gateway Mode, Bridge Mode, WISP Mode
DHCP Server	DHCP Server, DHCP Client, DHCP Client List,
Wireless Functions	Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS
	Guest network
Quality of Service	WMM, QoS(Bandwidth Control) , DMZ
VPN Pass-Through	PPTP, L2TP, IPSec
Access Control	Wireless Access Control
Internet Protoco	IPv4/IPv6
Environment
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Oprerating Humidity	10%~90%, non-condensing
Storage Humidity	5%~95%, non-condensing
Certifications	CE, RoHS

Our Advantages1. SHFiM2A adopts the Mesh technology, where the master node and the slave node are connected to each other to form a mesh network. Three of them cover 4300 square feet and through 3 walls.

2. Compliant with IEEE 802.11v and IEEE 802.11r seamless roaming protocols, SHFiM2A supports automatic network optimization and automatic routing selection, allowing you to enjoy more stable and flexible wireless network.3. SHFiM2A is a 1200 Mbps dual band (2.4GHz & 5GHz band) distribution mesh Wi-Fi system designed for 2100-4300sq.ft houses, bringing you with whole home Wi-Fi coverage, as well as fast and stable internet connection.

4. The master node adopts gigabit port, with combined wireless speeds of up to 1.2Gbps, which can give full play to the advantages of fiber bandwidth and watch 4K ultra clear video or online gaming at home anytime and anywhere.

5. The child node adopts the wall plug design, where the signal is not good to plug where,and supports the function of flexible installation, automatic networking with the internet.
Package Contents: 1 x SHFiM2-ProM, 2 x SHFiM2-ProS 3 x Power Adapter 1 x Quick Installation Guide 3 x Ethernet CableCompany Profile
